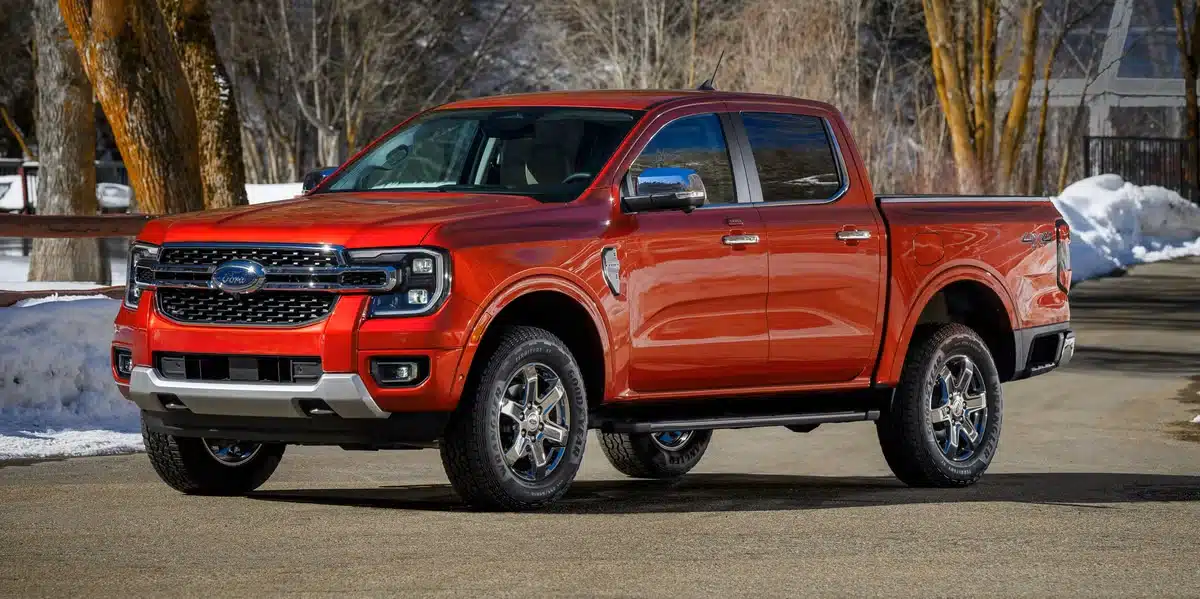

2026 Ranger Towing Capacity by Engine

2026 Ranger Towing Capacity by Engine

If you’re shopping a 2026 Ford Ranger for towing, here’s the headline:

The 2.3L EcoBoost and 2.7L EcoBoost Rangers are both rated up to 7,500 lbs when properly equipped.

The Ranger Raptor (3.0L EcoBoost V6) is rated up to 5,510 lbs.

That difference is not a mistake.

It’s a configuration and mission choice—Raptor is tuned for high-speed off-road performance, not maximum conventional towing.

---

📊 2026 Ranger towing capacity chart by engine (official numbers)

Use this table as your quick reference.

Then use the checklist further below to confirm you meet the equipment requirements and hitch limits.

2026 Ranger engine	Axle ratio (per towing guide)	GCWR (lbs)	Max loaded trailer weight (lbs)	Key requirement
2.3L EcoBoost I4	3.73	12,370 (4×2) / 12,590 (4×4)	7,500	Trailers over 3,500 lb: Trailer Tow Package (53R) required.
2.7L EcoBoost V6	3.73	12,745	7,500	Trailers over 3,500 lb: Trailer Tow Package (53R) required.
3.0L EcoBoost V6 (Raptor)	4.27	11,465	5,510	Trailer Tow Package 53R noted as required/standard context in the guide.

---

🔍 “Max loaded trailer weight” vs what you can actually tow

Ford’s chart is clear that you must stay under the Maximum Loaded Trailer Weight and under GCWR.

That’s important, because “I can tow 7,500” is not a free pass to load the truck with people, tools, and bed cargo and still run a 7,500-lb trailer.

The moment you add weight to the truck, you are consuming part of the combined weight allowance.

That is why real-world towing is typically capped by payload and setup, not the marketing headline.

---

✅ Required equipment: the single biggest “gotcha” on 2026 Ranger towing

Ford states plainly:

For trailers over 3,500 pounds – Trailer Tow Package (53R) is required.

Ford also adds a stronger warning than most brands:

Your New Vehicle Limited Warranty may be voided if you tow without this.

Practical translation:

If your plan is to tow anything meaningful—campers, boats, equipment trailers—shop Rangers that are already equipped with 53R.

Do not assume you can “add a hitch later” and call it the same thing.

---

🧰 What the Trailer Tow Packages include (and why it matters)

Ford lists multiple tow package codes in the guide and shows key equipment coverage, including:

A 4-/7-pin connector.

A Class IV hitch receiver.

Tow/Haul mode (standard across package lines).

Trailer Sway Control (shown as standard).

Depending on package/trim, the chart also shows items like trailer brake controller and camera features as included/standard in certain package lines.

For many owners, the key takeaway is simple:

Factory tow equipment is not just a receiver.

It’s the wiring, control logic, cooling assumptions, and capacity labeling that align the truck to the tow rating.

---

⚠ Hitch receiver and tongue weight limits you must respect

Ford provides a hitch receiver weight capacity section and explicitly cautions that hitch receiver capacity can exceed the vehicle’s max trailer weight, so you must still follow the Trailer Towing Selector chart.

But the hitch limits still matter because tongue weight is what most half-ton and midsize owners exceed first.

For the 2026 Ranger, the guide shows:

Hitch receiver (Ranger): 7,500 lb trailer capacity and 750 lb max tongue load

Hitch receiver (Ranger Raptor): 5,510 lb trailer capacity and 550 lb max tongue load.

That aligns with a basic tongue-weight planning rule many owners use:

A typical conventional trailer tongue weight is often around 10%.

A 7,500-lb trailer at 10% implies ~750 lb tongue weight—exactly where Ford lists the maximum tongue load.

This is why “7,500 max tow” setups tend to be extremely sensitive to how the trailer is loaded.

If the trailer is tongue-heavy (common with travel trailers), you can hit the tongue limit before you hit the trailer-weight limit.

---

🌬️ The overlooked towing limiter: frontal area

Ford includes a frontal area limitation that directly affects towing performance:

Up to 30 sq. ft. without Trailer Tow Package.

Up to 55 sq. ft. with Trailer Tow Package.

Ford notes that exceeding the limitation may significantly reduce performance.

In plain English:

A tall, flat-front travel trailer is a very different towing workload than a low-profile utility trailer at the same weight.

If you’re towing an RV-style trailer, the tow package is not “nice to have”—it changes what Ford expects the truck can handle in the real world.

---

🧠 Why the 2.3 and 2.7 both top out at 7,500

The towing chart shows both engines at 7,500 lbs maximum loaded trailer weight with the 3.73 axle ratio.

So why buy the 2.7 if it doesn’t raise the headline tow number?

Because towing is not only about the maximum rating.

It is also about how the truck feels at 60–70 mph, how often it downshifts on grades, and how confidently it accelerates for merges and passing.

In other words:

7,500 may be the same.

But the towing experience can differ.

---

🦖 Why the Ranger Raptor tows less (and why that’s normal)

Ford lists the Raptor configuration separately:

3.0L EcoBoost V6, 4.27 axle ratio, 11,465 GCWR, and 5,510 max loaded trailer weight.

That’s not a “weakness.”

It’s a tradeoff.

Raptor is engineered around off-road dynamics and durability.

Those priorities typically come with different suspension tuning and capacity constraints that reduce towing and tongue ratings.

Ford makes that distinction explicit by listing different max tongue loads (550 lb vs 750 lb) and a lower max trailer number in the chart.

---

✅ “Which Ranger engine should I choose for towing?” (buyer guidance)

🟦 Best value towing: 2.3L EcoBoost (up to 7,500)

If you want the max rating without paying for the V6, the 2.3L can still reach 7,500 lbs with the correct equipment.

This is the cleanest “work and weekend” configuration for many owners.

🟩 Best towing feel: 2.7L EcoBoost (up to 7,500)

If you tow frequently, tow in hills, or tow at highway speeds with a taller trailer, the 2.7L can deliver a more relaxed experience even though the max rating is the same in the guide.

🟥 Best off-road first: Ranger Raptor (up to 5,510)

If you’re buying Raptor, treat towing as secondary.

The towing guide lists 5,510 lbs and a 550-lb tongue cap.

---

✅ The 60-second checklist: “Can my 2026 Ranger tow my trailer?”

1) Confirm your engine and drivetrain

2.3 vs 2.7 vs 3.0 Raptor is not interchangeable in towing rating.

2) Confirm you have Trailer Tow Package (53R) if towing over 3,500 lb

Ford lists it as required and flags warranty risk.

3) Keep trailer weight at or under Ford’s max loaded trailer weight

7,500 for 2.3/2.7.

5,510 for Raptor.

4) Keep tongue weight under the receiver limit

750 lb max tongue for Ranger.

550 lb max tongue for Raptor.

5) Respect frontal area limitations

30 sq. ft. without tow package.

55 sq. ft. with tow package.

6) Use Tow/Haul mode when towing

Ford notes Tow/Haul mode helps reduce unwanted gear searching and helps control vehicle speed when going downhill.

---

• 2026 Ford Ranger Towing Guide (official PDF) Ford VDM+1
• Ford Towing & Trailering hub (guides and definitions) ford.com

---

❓ FAQs

---

🏁 Conclusion

If your goal is maximum towing in a 2026 Ranger, the playbook is simple:

Choose 2.3L or 2.7L.

Make sure you have Trailer Tow Package (53R) if towing over 3,500 lb.

Stay under 7,500 lbs trailer weight and 750 lbs tongue weight.

If you’re buying Raptor, plan around 5,510 lbs and 550 lbs tongue weight.

And if you’re towing a tall RV-style trailer, treat frontal area as a real limiter, not an afterthought.
