Exploring Semi Trailer Truck and Their Specific Types of Trailers

Leave a Comment / Trucks, semi trucks /
semi trailer truck

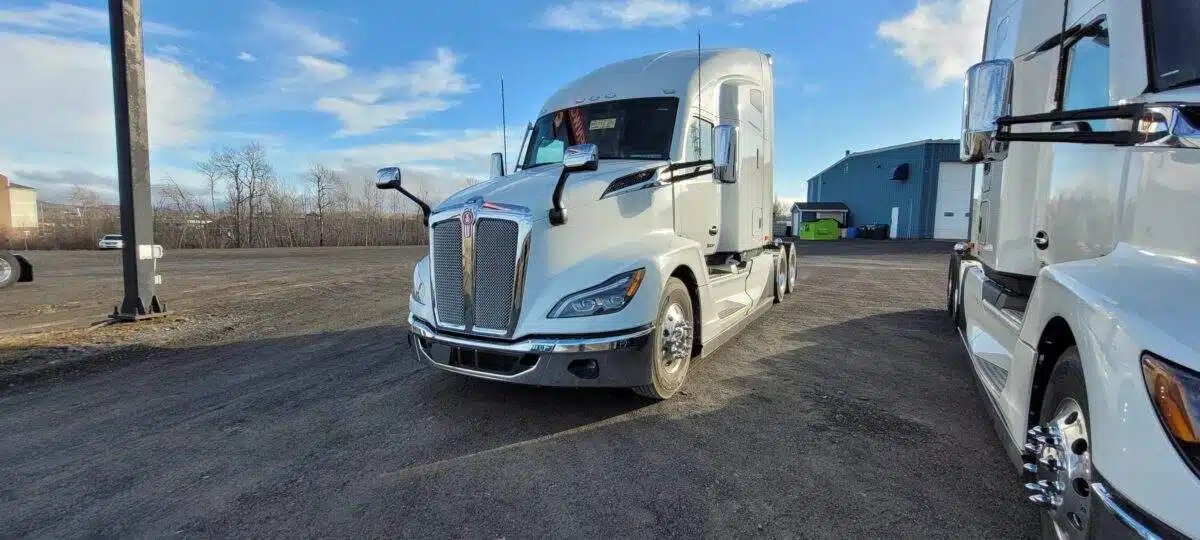

Semi Trailer Truck

Semi-trailer trucks, also known as tractor-trailers, big rigs, or articulated lorries, are a cornerstone of global logistics.

These semi trailer truck are responsible for transporting goods efficiently across long distances.

These trucks are composed of two main components: the tractor (or cab) and the trailer.

The flexibility of attaching different types of trailers to a single tractor makes semi trailer truck incredibly versatile.

This article explores the specific types of semi trailer truck and their trailers, offering insights into their unique functionalities.

What Are Semi-Trailer Trucks?

A semi trailer truck consists of:

  1. Tractor Unit: The powered part containing the engine, driver’s cab, and controls. It’s designed to tow trailers and is equipped with a fifth wheel to connect the trailer.
  2. Trailer: A non-powered unit that carries goods. The trailer’s front end rests on the tractor, supported by the fifth wheel, while the rear end is supported by its own wheels.

Key Specifications of the Tractor Unit

Modern tractor units are engineering marvels, equipped with advanced technologies and systems that enhance performance, safety, and efficiency:

1. Engine and Powertrain

  • Engines: Most semi-trucks are powered by large diesel engines, typically ranging from 400 to 600 horsepower. Some newer models also offer alternative fuel options, such as natural gas or electric powertrains.
  • Torque: Diesel engines generate high torque, often exceeding 1,500 lb-ft, which is essential for towing heavy loads.
  • Transmission: Semi-trucks commonly use automated manual transmissions (AMTs) or manual transmissions with up to 18 gears to optimize power delivery.

2. Braking Systems

  • Air Brakes: semi trailer truck use air brake systems, which rely on compressed air to activate the brake pads. This system ensures consistent and reliable braking, even under heavy loads.
  • Emergency Brakes: Equipped with spring-loaded parking brakes that automatically engage if air pressure is lost.
  • ABS (Anti-lock Braking System): Prevents wheel lock-up during hard braking, improving safety.

3. Suspension and Axles

  • Air Suspension: Provides a smoother ride and better weight distribution.
  • Axles: Typically, semi-trucks have two or three axles, with some configurations including tandem or tridem setups for additional load capacity.

4. Fuel Systems

  • Fuel Tanks: Most semi-trucks have dual fuel tanks with a combined capacity of 200-300 gallons, enabling long-haul travel without frequent refueling.
  • Efficiency: Advanced fuel injection systems and turbocharging optimize fuel efficiency, often achieving 6-8 miles per gallon.

5. Driver Assistance Technologies

  • Electronic Logging Devices (ELDs): Monitor driver hours and ensure compliance with regulations.
  • Collision Avoidance Systems: Use radar and cameras to detect potential hazards and warn the driver or apply automatic braking.
  • Adaptive Cruise Control: Maintains a safe following distance from vehicles ahead.
  • Lane Departure Warning: Alerts the driver if the truck drifts out of its lane.

6. Cab Configurations

  • Day Cab: Compact design without a sleeper berth, suitable for short hauls.
  • Sleeper Cab: Includes a bed and amenities for long-distance drivers, often equipped with climate control, storage, and entertainment systems.

Types of Semi-Trailers

Different industries have unique transportation requirements, leading to the development of various trailer types. Below is a breakdown of the most common semi trailer truck and their uses:

1. Dry Van Trailers

  • Description: The most common type of trailer, dry vans are enclosed units designed to transport non-perishable goods.
  • Uses: Furniture, clothing, electronics, and other general cargo.
  • Key Features: Protection from weather and theft but lack temperature control.

2. Refrigerated Trailers (Reefers)

  • Description: Trailers equipped with cooling systems to maintain specific temperatures.
  • Uses: Transporting perishable goods like food, pharmaceuticals, and flowers.
  • Key Features: Advanced insulation and refrigeration systems.

3. Flatbed Trailers

  • Description: Open platforms without sides or roofs, ideal for oversized or irregularly shaped cargo.
  • Uses: Construction materials, heavy machinery, and large equipment.
  • Key Features: Easy loading/unloading from all angles.

4. Step Deck Trailers (Drop Deck Trailers)

  • Description: Similar to flatbeds but with a lower deck height to accommodate taller loads.
  • Uses: Taller equipment or machinery that exceeds the legal height for standard flatbeds.
  • Key Features: Two deck levels: a higher front section and a lower rear section.

5. Lowboy Trailers

  • Description: Ultra-low deck trailers designed for extremely heavy and tall loads.
  • Uses: Transporting construction equipment like bulldozers, excavators, and cranes.
  • Key Features: Low deck height for high-clearance loads and enhanced stability.

6. Tanker Trailers

  • Description: Cylindrical trailers designed to carry liquids, gases, or fine solids.
  • Uses: Transporting fuel, chemicals, milk, or water.
  • Key Features: Specialized compartments, sometimes insulated or pressurized.

7. Curtainside Trailers

  • Description: Similar to dry vans but with flexible curtains on the sides for easy access.
  • Uses: Transporting palletized goods or items requiring frequent loading/unloading.
  • Key Features: Weather protection with side-loading convenience.

8. Extendable Flatbed Trailers

  • Description: Flatbeds that can extend to accommodate longer cargo.
  • Uses: Transporting beams, pipes, or wind turbine blades.
  • Key Features: Adjustable length for versatile cargo sizes.

9. Side Dump Trailers

  • Description: Trailers that unload materials by tilting to the side.
  • Uses: Transporting loose materials like sand, gravel, or agricultural products.
  • Key Features: Faster unloading compared to rear-dump designs.

10. Multi-Car Trailers

  • Description: Trailers specifically designed to transport vehicles.
  • Uses: Moving cars for dealerships or long-distance relocations.
  • Key Features: Ramps and multiple levels for vehicle stacking.

Specialized Semi-Trailers

Beyond standard designs, certain industries require highly specialized trailers:

1. Livestock Trailers

  • Equipped with ventilation systems to ensure animal welfare during transport.
  • Features multiple decks for different livestock sizes.

2. Logging Trailers

  • Designed with poles and chains to secure logs.
  • Often includes adjustable stakes for different load sizes.

3. Intermodal Trailers

  • Built to transport shipping containers.
  • Compatible with multiple modes of transportation, including trains and ships.

4. Hopper Trailers

  • Designed for bulk agricultural goods like grains or fertilizers.
  • Includes bottom-release hatches for quick unloading.

5. B-Train Trailers

  • Features two connected trailers for greater cargo capacity.
  • Common in Canada and Australia.

Matching Semi-Trailers to Tractors

Different trailers require tractors with specific configurations:

  1. Day Cabs: Compact tractors without a sleeper berth, ideal for short hauls.
  2. Sleeper Cabs: Larger tractors with sleeping accommodations, used for long hauls.
  3. Single Axle vs. Tandem Axle: Trailers with heavier loads require tandem axles for better weight distribution.

Regulatory Considerations

When using semi trailer truck, it’s essential to comply with regulations:

  • Weight Limits: Governed by axle type and trailer design.
  • Height and Length Restrictions: Varies by region.
  • Cargo-Specific Rules: Hazardous materials require additional permits.

Conclusion

Semi trailer truck and their various types of trailers form the backbone of modern logistics.

Understanding the unique capabilities of each trailer type can help businesses optimize transportation efficiency.

Whether it’s refrigerated goods, oversized equipment, or bulk materials, there’s a trailer designed to meet the challenge.
